Flat Head Crescent Type Spraying Machine Apparatus 4 Pieces
Features of 8-Headed Crescent Type Spraying Machine Apparatus
Note: The distance between the two holes of our spraying apparatus connection apparatus; The apparatus is suitable for up to 62 cm-67 cm, including the connection area gap; It is compatible with all standard type spraying machines. For special production spraying machines, please contact us and confirm.
The price stated is the plastic pipe model price of the spraying machine apparatus. Please choose from different models.
The nozzle used in the apparatus is 360 degrees movable, and long or close range pulverization can be adjusted by moving it back and forth with the adjustment handle on the back of the nozzle . When tightened completely, the nozzle discharge can be turned off.
The spraying distance is 5.5 - 6 meters. It is a multifunctional product. Spraying nozzles are portable and have the ability to rotate 360 degrees in place. At the end of the job, it can be easily dismantled and replaced with another apparatus. There are 3 different options: chrome-iron and plastic models.

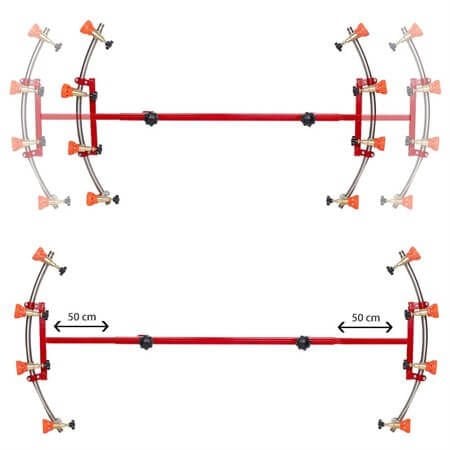

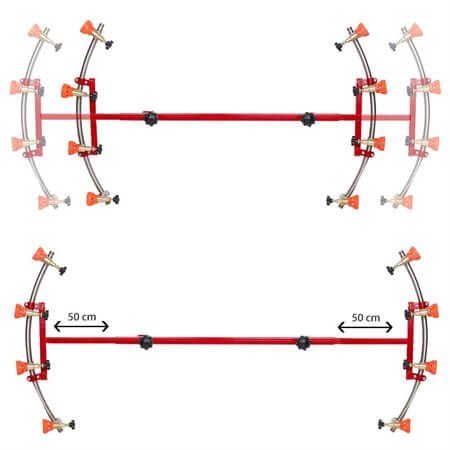

The crescent-shaped parts can be moved 50 cm (right/left). The total length of our apparatus is 175 cm when opened.

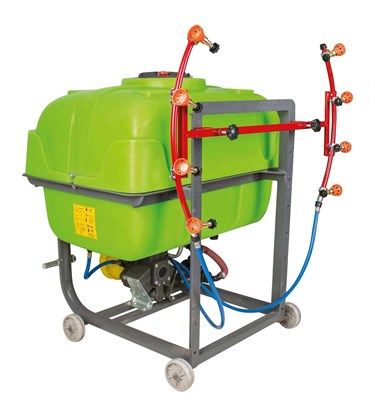

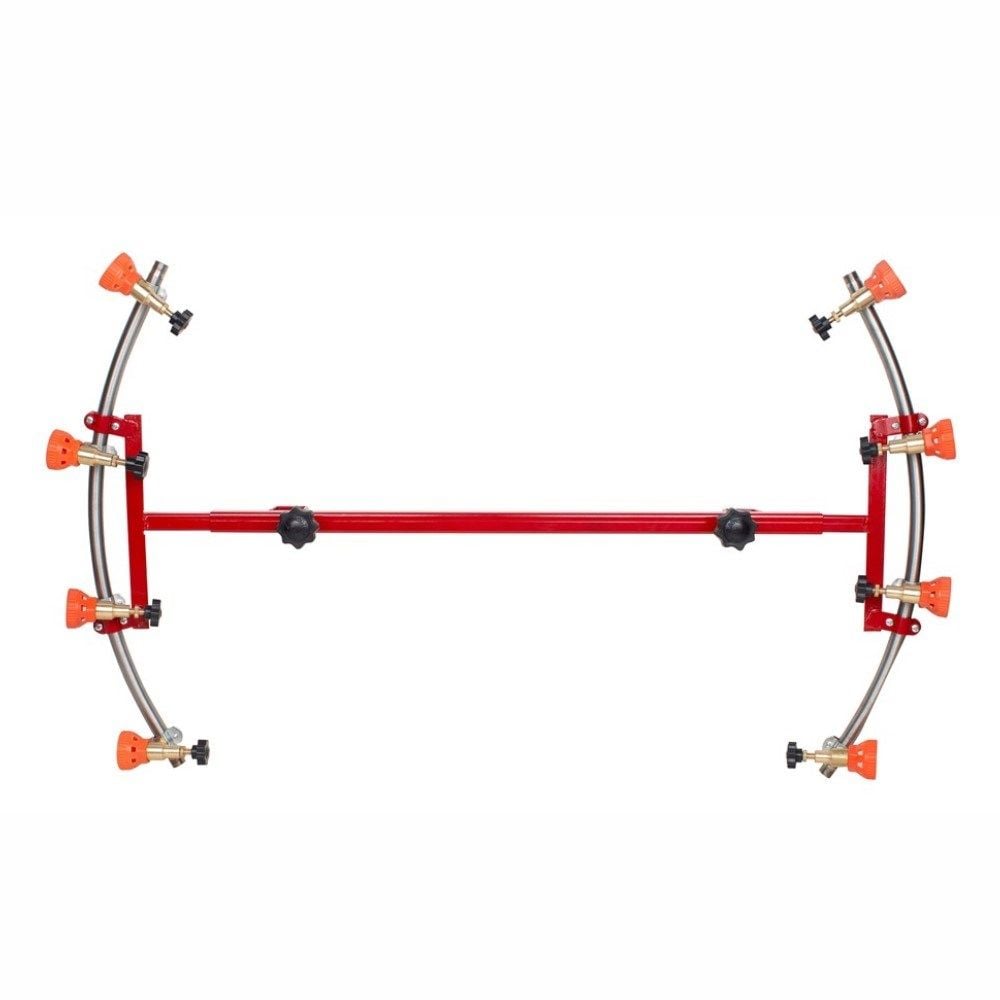

Our spraying machine apparatus has a total of 8 heads, 4 on the left and 4 on the right. The spraying machine is designed to be easily mounted on all spraying machines that can work with tractor tail shaft and electricity.
our apparatus; It is delivered as a set (connection hose and necessary materials) in a box. Turbo type was made by spraying machines.
It makes its task possible in simple type spraying machines by changing only a simple apparatus.
Apparatus Closed Total Length (cm); 106
Apparatus Open Total Length; (cm); 255
Right and Left Opening Length (cm); 75
